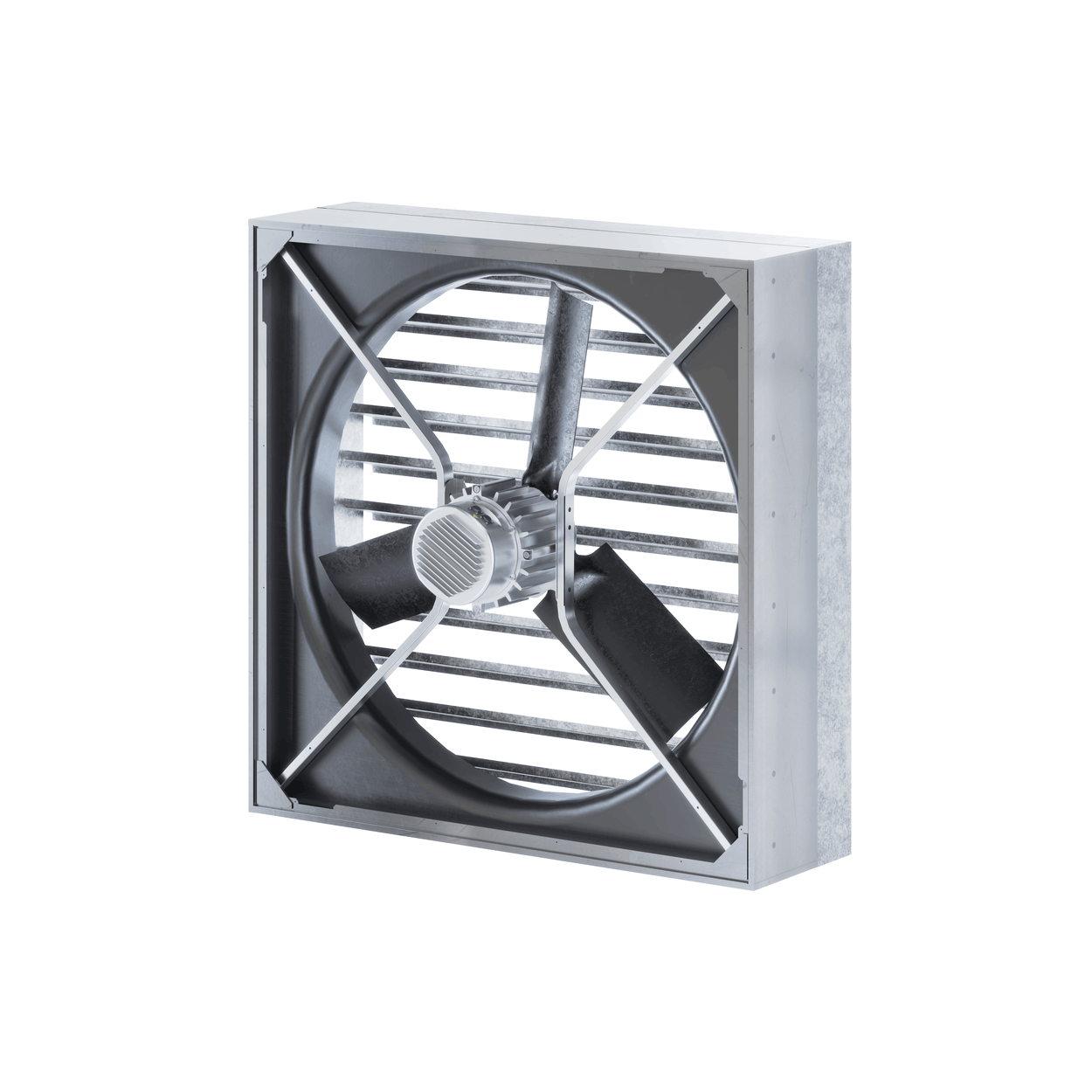

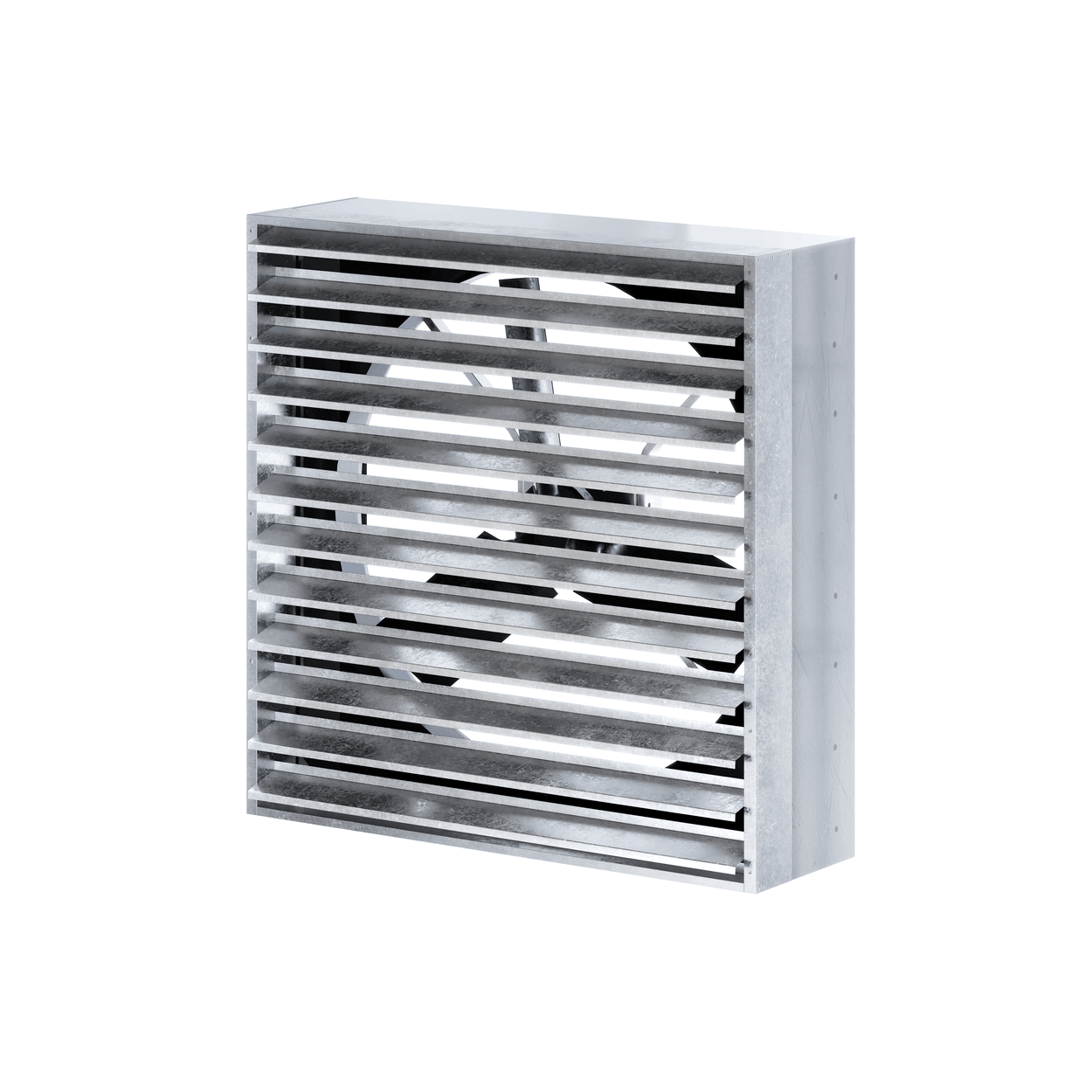

AirWall Wall Exhaust Fan

The Airwall is an exhaust fan built in DC motor for silent operation, with high IP65 and corrosion protection.

Motor Type and Power: IP65 DC motor with integrated drive, 1000W
Power Supply: 200 – 480 VAC III, 50/60 Hz
Airflow: 47,706 m3/h
Sound level: <58 dBA
Max Speed: 475rpm
Fan Dimensions: 1400x1400x400 mm
Material: stainless steel and Glass Reinforced Polypropylene blades
Control: Potentiometer (Modbus RS485 optional)

Only 1 left in stock

Product information

Power: 1040 W
Max. Current: 2,6 A
Max. Speed: 475 rpm
Air Flow: 47.706 m³/h
Coverage: -
Weight: -

Product documents

Download Tech Sheet

Download Installation Guide

Download Warranty

Contact Support

Description
Trusted Shops Reviews

The Anemoi AirWall is an industrial exhaust fan ideal for extracting and renewing air in buildings. Designed and made in Europe, it integrates into the wall hardly taking up any space inside the building. This wall exhaust fan can be embedded on the wall.

The AirWall is built in a DC motor that makes it quieter and more efficient with an integrated control board. These fans are controlled by a potentiometer. Optionally, you can require a quotation to control these exhaust fans using Modbus RS485 with one of our controllers.

The casing is made from stainless steel and the blades are made from high quality glass-reinforced polypropylene to ensure full protection to corrosion.

This wall mount exhaust fan is ideal for gyms, farms and industrial buildings in general.
