Cómo ventilar talleres mecánicos
[tm_pb_section admin_label=”section”][tm_pb_row admin_label=”row”][tm_pb_column type=”4_4″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]
Cómo ventilar talleres mecánicos
[/tm_pb_text][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]Los talleres mecánicos son lugares de trabajo donde se debe cumplir con determinados valores mínimos de ventilación especificados en el Anexo III del BOE-A-1997-8669. Considerando los talleres mecánicos como locales cerrados donde se realizan trabajos ligeros, se especifica que:
- La temperatura de los locales debe estar comprendida entre 14 y 25 ºC.
- La humedad relativa estará comprendida entre el 30 y el 70 por 100.
- Los trabajadores no deberán estar expuestos de forma frecuente o continuada a corrientes de aire cuya velocidad exceda los 0,75 m/s en ambientes calurosos.
- Sin perjuicio de lo dispuesto en relación a la ventilación de determinados locales en el Real Decreto 1618/1980, de 4 de julio, por el que se aprueba el Reglamento de calefacción, climatización y agua caliente sanitaria, la renovación mínima del aire de los talleres será de 50 metros cúbicos de aire limpio por hora y trabajador a fin de evitar el ambiente viciado y los olores desagradables.
¿Cómo conseguir en un taller mecánico una temperatura inferior a 25ºC en verano?
[/tm_pb_text][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”row”][tm_pb_column type=”1_2″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]Lo primero que debemos comprobar es que el techo o las paredes del taller mecánico no producen radiación en el interior. Si produce radiación, nuestro aislante térmico se aplica en el exterior como si fuera una pintura sin entorpecer a los trabajadores del taller ni añadir peso a la cubierta y evita dicha radiación en el taller.

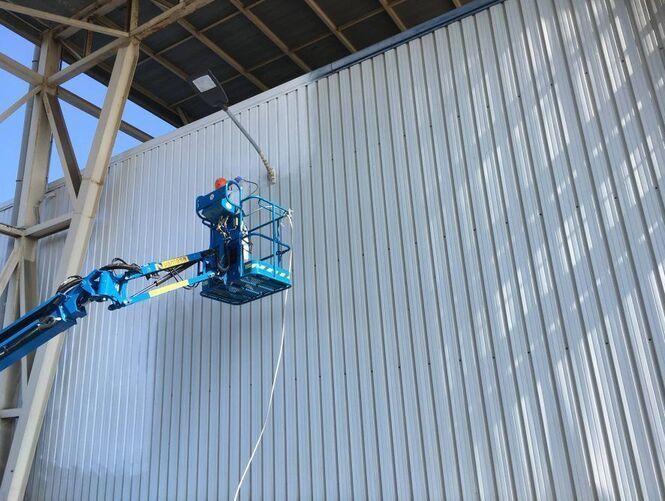

Empresas como Ford ya han comprobado que se reducen 20ºC con su aplicación.
[/tm_pb_text][/tm_pb_column][tm_pb_column type=”1_2″][tm_pb_image admin_label=”Image” src=”https://magnovent.eu/wp-content/uploads/2020/02/PINTURA-aislante-cerámica-líquida.jpg” show_in_lightbox=”off” url=”https://magnovent.eu/es/productos/pintura-aislante/” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”left” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid”] [/tm_pb_image][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”row”][tm_pb_column type=”1_2″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]El aislamiento en muchos casos no hará tener una temperatura en el taller mecánico inferior a 25ºC y tendremos que añadir sistemas de climatización.
Lo primero que se nos ocurre es recurrir a equipos de aire acondicionado, pero ¿y si tengo otras opciones con menor consumo?
Los ventiladores no necesitan enfriar el volumen completo de aire en el taller para que los trabajadores tengan una sensación térmica inferior a 25ºC.
El gráfico siguiente se corresponde con el diagrama de temperatura efectiva de HSE (Health and Safety Executive):
[/tm_pb_text][/tm_pb_column][tm_pb_column type=”1_2″][tm_pb_image admin_label=”Image” src=”http://magnovent.eu/uploads/multimedia/diagrama-temperatura-efectiva.png” show_in_lightbox=”off” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”left” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid”] [/tm_pb_image][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”row”][tm_pb_column type=”4_4″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]Según este diagrama, si la temperatura del taller es de 27ºC y el aire en su interior se mueve a 0,75m/s, la sensación térmica está aproximadamente en 24,5ºC, 0,5ºC por debajo del máximo permitido.

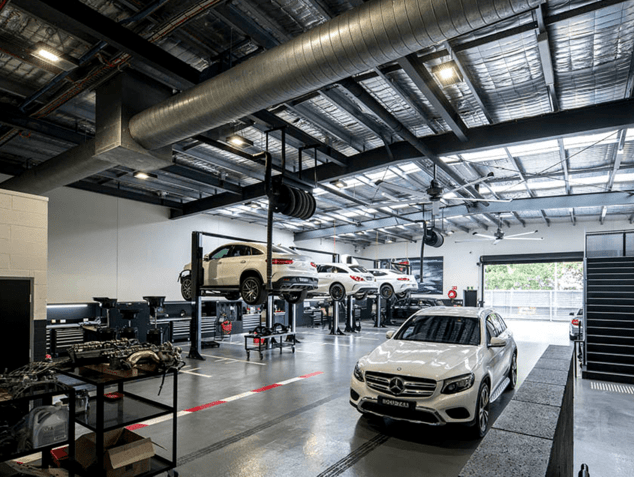

Para conseguir que el aire interior en el taller tenga suficiente movimiento se debe buscar el ventilador adecuado para cada caso.
[/tm_pb_text][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_image admin_label=”Image” src=”https://magnovent.eu/wp-content/uploads/2017/04/avd550automotive2.jpg” show_in_lightbox=”off” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”left” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid”] [/tm_pb_image][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]Si se pretende ventilar toda la superficie del taller por igual, optamos por los ventiladores de techo con estas recomendaciones:
[/tm_pb_text][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”1_3″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]De 2,5 a 5 metros de altura, Magnovent utiliza ventiladores con motores de máximo 100W con consumos muy reducidos que van de 3 a 89W.

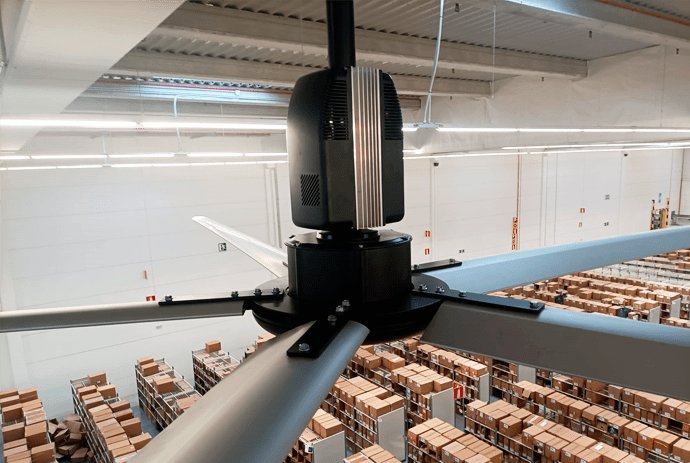

[/tm_pb_text][/tm_pb_column][tm_pb_column type=”1_3″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]A partir de los 6,5 metros de altura, para garantizar que el aire pueda repartirse por el suelo, Magnovent utiliza siempre ventiladores con motores de potencia igual o superior a 1000W. Disponemos de ventiladores para talleres que consumen 1500W y cubren casi 3360m².
[/tm_pb_text][/tm_pb_column][tm_pb_column type=”1_3″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]Para elegir el diámetro del ventilador Magnovent se rige por las barreras físicas que puedan haber en el techo o por la altura de instalación. Recomendamos que si la altura del techo es inferior a 7,5 metros, el ventilador no supere los 5,5 metros de diámetro.
[/tm_pb_text][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” height=”30″ height_tablet=”15″ height_phone=”10″ height_last_edited=”on|phone” divider_style=”solid”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”1_3″][tm_pb_image admin_label=”Image” src=”https://magnovent.eu/wp-content/uploads/2020/01/ventilador-industrial-grande-Airpro-100W.png” show_in_lightbox=”off” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”left” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid”] [/tm_pb_image][/tm_pb_column][tm_pb_column type=”1_3″][tm_pb_image admin_label=”Image” src=”https://magnovent.eu/wp-content/uploads/2020/01/ventilador-industrial-grande-Airpro-1000W.jpg” show_in_lightbox=”off” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”left” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid”] [/tm_pb_image][/tm_pb_column][tm_pb_column type=”1_3″][tm_pb_image admin_label=”Image” src=”https://magnovent.eu/wp-content/uploads/2020/01/ventilador-industrial-grande-Airpro-350W.jpg” show_in_lightbox=”off” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”left” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid”] [/tm_pb_image][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”2_3″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]Si se pretende ventilar o incluso fortalecer algunas zonas concretas, optamos por los ventiladores de suelo, techo o pared siguientes:

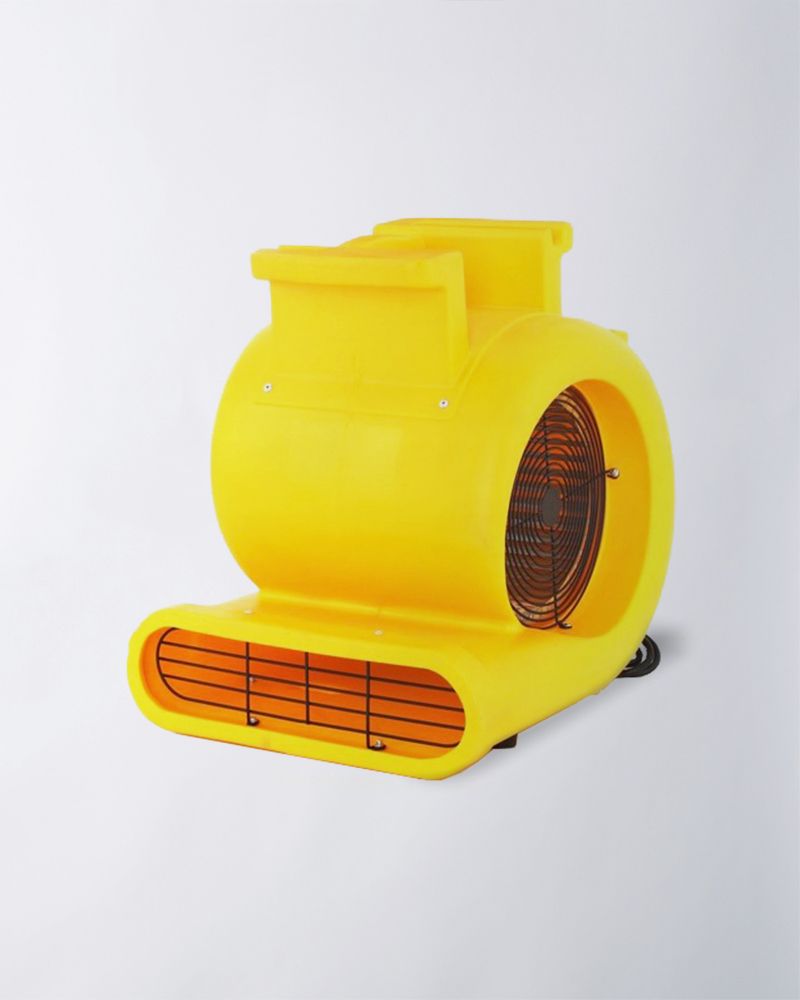

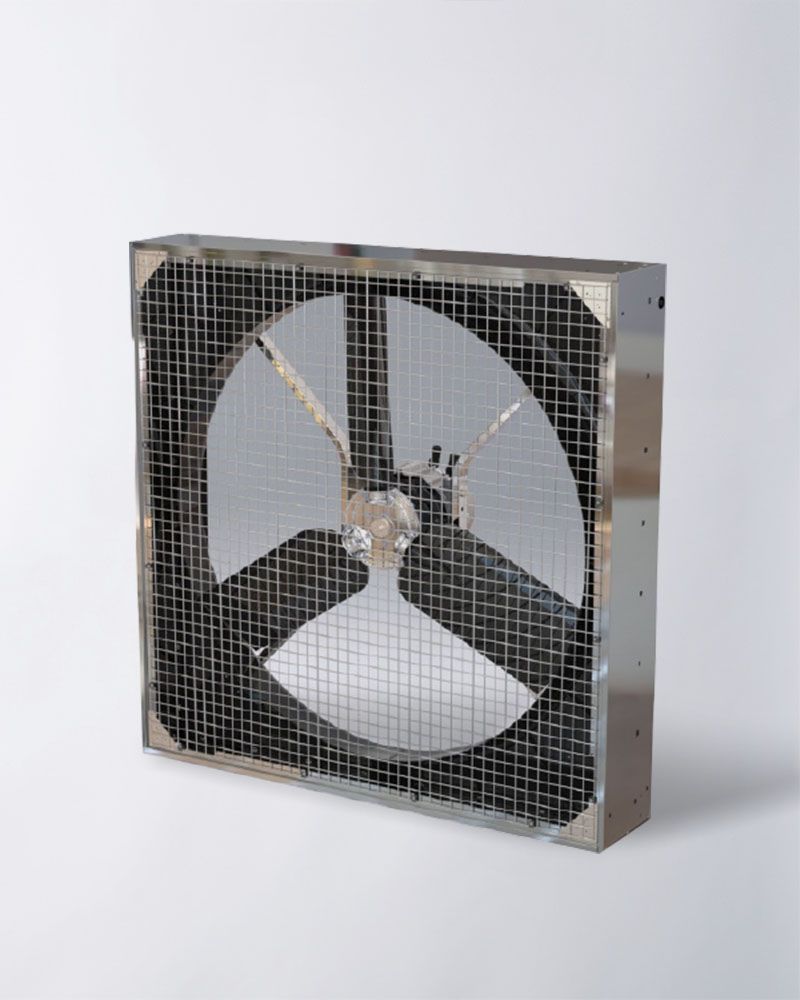

[/tm_pb_text][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” height=”30″ height_tablet=”15″ height_phone=”10″ height_last_edited=”on|phone” divider_style=”solid”] [/tm_pb_divider][tm_pb_image admin_label=”Image” src=”https://magnovent.eu/wp-content/uploads/2019/05/IMG_0478-min.jpg” title_text=”Airgo” show_in_lightbox=”off” url=”https://magnovent.eu/es/productos/ventiladores-industriales-moviles/airgo/” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”left” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid”] [/tm_pb_image][/tm_pb_column][tm_pb_column type=”1_3″][tm_pb_image admin_label=”Image” src=”https://magnovent.eu/wp-content/uploads/2019/05/ceiling-2627782_1920.jpg” title_text=”Airbeam” show_in_lightbox=”off” url=”https://magnovent.eu/es/productos/ventiladores-de-pared/ventilador-de-tambor-airbeam/” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”center” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid”] [/tm_pb_image][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” height=”30″ height_tablet=”15″ height_phone=”10″ height_last_edited=”on|phone” divider_style=”solid”] [/tm_pb_divider][tm_pb_image admin_label=”Image” src=”https://magnovent.eu/wp-content/uploads/2019/05/IMG_0487-min.jpg” title_text=”Airwagon” show_in_lightbox=”off” url=”https://magnovent.eu/es/productos/ventiladores-industriales-moviles/airwagon/” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”left” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid”] [/tm_pb_image][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” height=”30″ height_tablet=”15″ height_phone=”10″ height_last_edited=”on|phone” divider_style=”solid”] [/tm_pb_divider][tm_pb_image admin_label=”Image” title_text=”Airpivot” show_in_lightbox=”off” url=”https://magnovent.eu/es/productos/ventiladores-de-pared/ventilador-industrial-de-pared/” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”left” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid” src=”https://magnovent.eu/wp-content/uploads/2020/02/ventiladores-pared.jpg”] [/tm_pb_image][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”1_2″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]Si se pretende crear una corriente de aire en talleres rectangulares podemos utilizar el ventilador Anemoi AIRWALL con un caudal de hasta 62.220 m3/h que también hará de extractor:
[/tm_pb_text][/tm_pb_column][tm_pb_column type=”1_2″][tm_pb_image admin_label=”Image” show_in_lightbox=”off” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”left” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid” src=”https://magnovent.eu/wp-content/uploads/2020/01/montaje-scaled.jpg”] [/tm_pb_image][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]¿Cómo conseguir en un taller mecánico una humedad relativa entre 30 y 70 %?
[/tm_pb_text][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]Magnovent se ha enfrentado a entornos de trabajo con humedades relativas del 100% y siempre ha optado por la misma solución para disminuir estos valores, las renovaciones de aire.
Para conseguir grandes renovaciones de aire, bien colocamos un ventilador de extracción, bien colocamos los ventiladores de techo.
Estos dos elementos expulsarán aire del interior y meterán aire nuevo si dejamos una apertura en el taller que puede ser una puerta, ventana, rejilla o exutorio.
[/tm_pb_text][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]¿Cómo generar corrientes de aire cuya velocidad no exceda los 0,75 m/s en un taller mecánico?
[/tm_pb_text][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”1_2″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]Todos los ventiladores expuestos en esta guía cuentan con una regulación de 0 al 100% para el trabajador del taller pueda ponerlo a su gusto. Los ventiladores de techo de Magnovent funcionan a bajas revoluciones para generar una brisa constante en el taller.
El proyecto de ventilación del taller debe estudiarse siempre para que la velocidad de propagación del aire por el suelo esté comprendida entre 0,8 y 0,3 m/s.
[/tm_pb_text][/tm_pb_column][tm_pb_column type=”1_2″][tm_pb_image admin_label=”Image” src=”https://magnovent.eu/wp-content/uploads/2020/04/Velocidad-3d-3-scaled.jpg” show_in_lightbox=”off” url_new_window=”off” use_overlay=”off” animation=”left” sticky=”off” align=”left” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid”] [/tm_pb_image][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]¿Cómo garantizar una renovación mínima de 50 m3 por hora y trabajador en un taller mecánico?
[/tm_pb_text][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row”][tm_pb_column type=”4_4″][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]Haciendo un cálculo rápido si tenemos 10 trabajadores en el taller mecánico, necesitaremos renovar 500m3/h.
Si abrimos una puerta estándar de 2.04m x 0,63m tendremos una apertura de 1,29m².
(500 / 1,29) / 3600 = 0,1m/s
Habiendo dimensionado el proyecto de ventilación del taller con ventiladores de techo a un mínimo de velocidad de aire interior de 0,3m/s estaríamos renovando tres veces lo necesario.

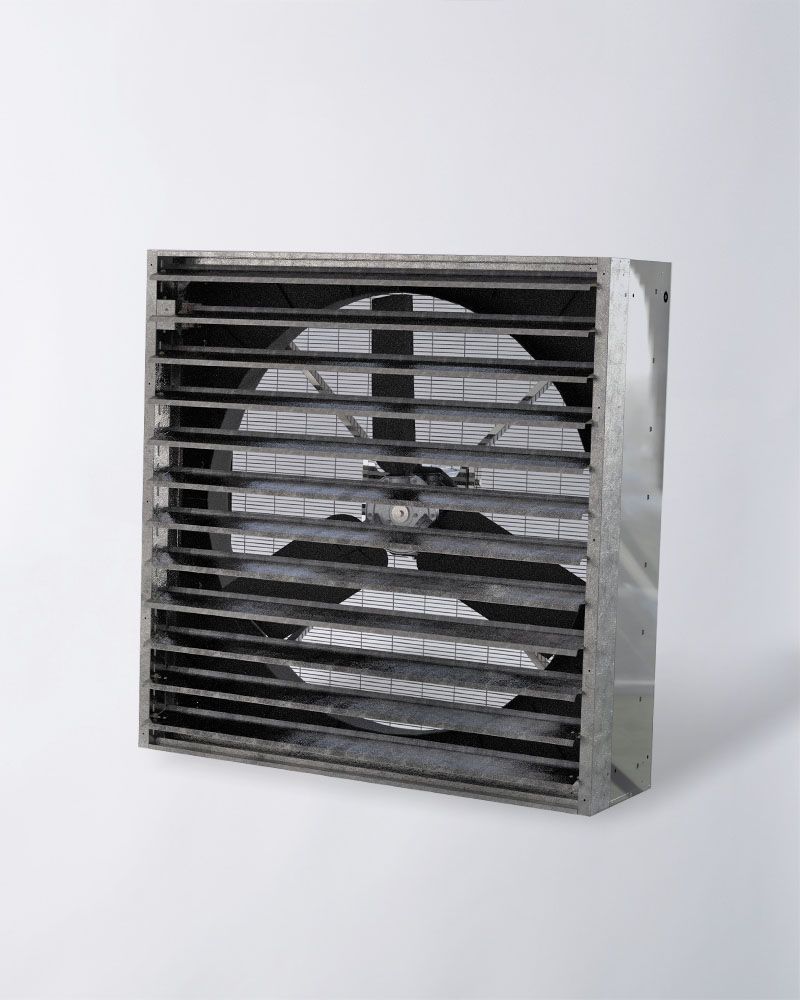

Habiendo utilizado el extractor de pared Anemoi AIRWALL con un caudal de hasta 62.220 m3/h extraeremos 124 veces más aire que el establecido por norma.
[/tm_pb_text][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][/tm_pb_column][/tm_pb_row][tm_pb_row admin_label=”Row” make_fullwidth=”off” use_custom_width=”off” use_grid_padding=”on” width_unit=”on” padding_mobile=”off” background_color=”#f6f6f6″ allow_player_pause=”off” parallax=”off” parallax_method=”off” make_equal=”off” parallax_1=”off” parallax_method_1=”off” vertical_alligment_1=”start” responsive_laptop_1=”inherit” responsive_tablet_1=”inherit” responsive_phone_1=”inherit” order_laptop_1=”1″ order_tablet_1=”1″ order_phone_1=”1″ column_padding_mobile=”on”][tm_pb_column type=”4_4″][tm_pb_divider admin_label=”Divider” color=”#ffffff” show_divider=”off” divider_style=”solid” height=”50″ height_tablet=”30″ height_phone=”20″ height_last_edited=”on|phone”] [/tm_pb_divider][tm_pb_text admin_label=”Text” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]
